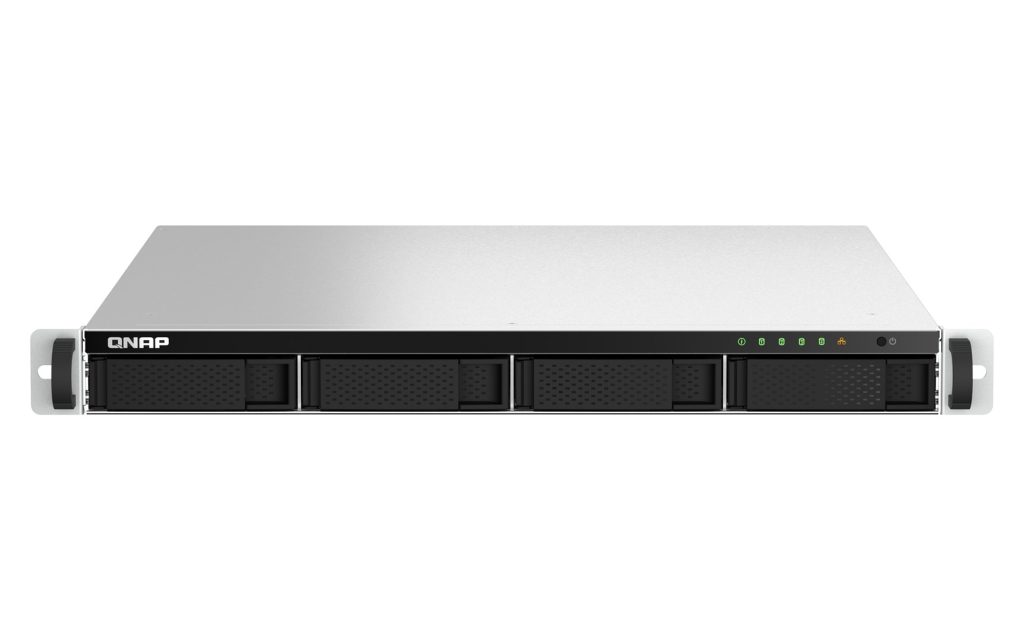

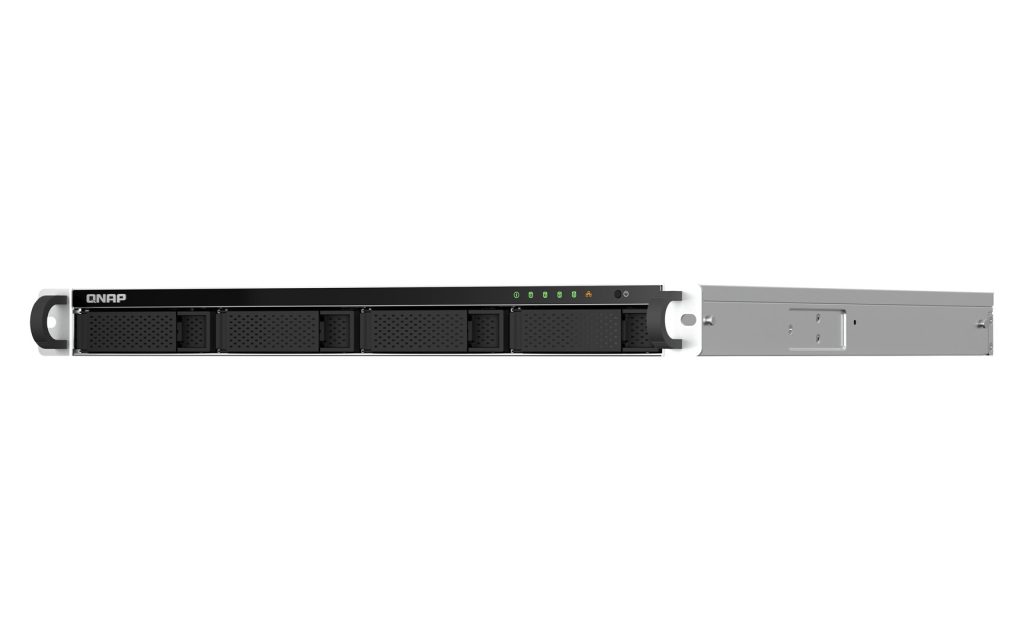

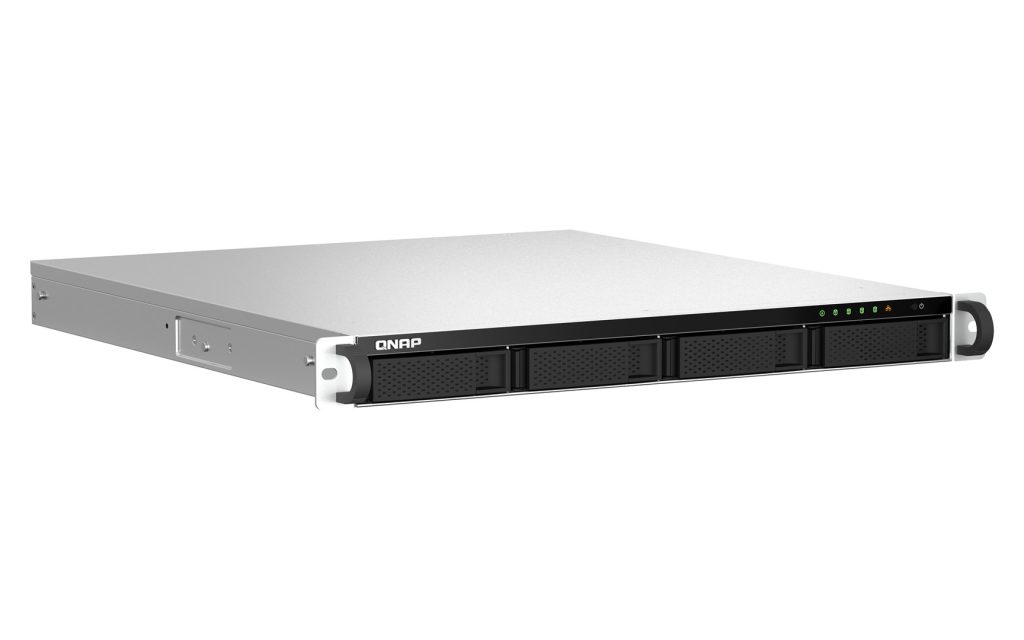

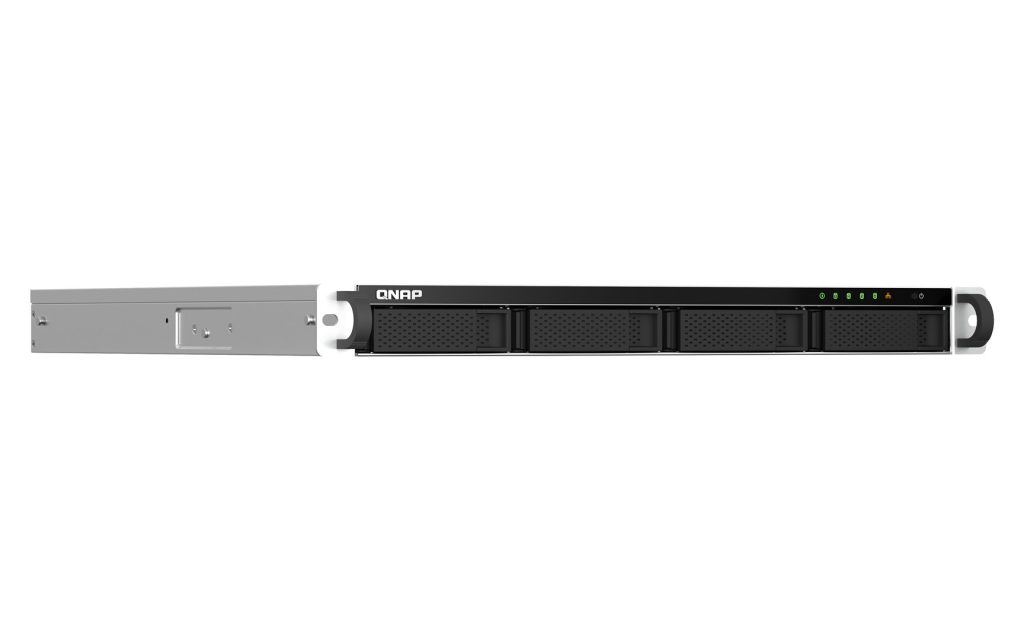

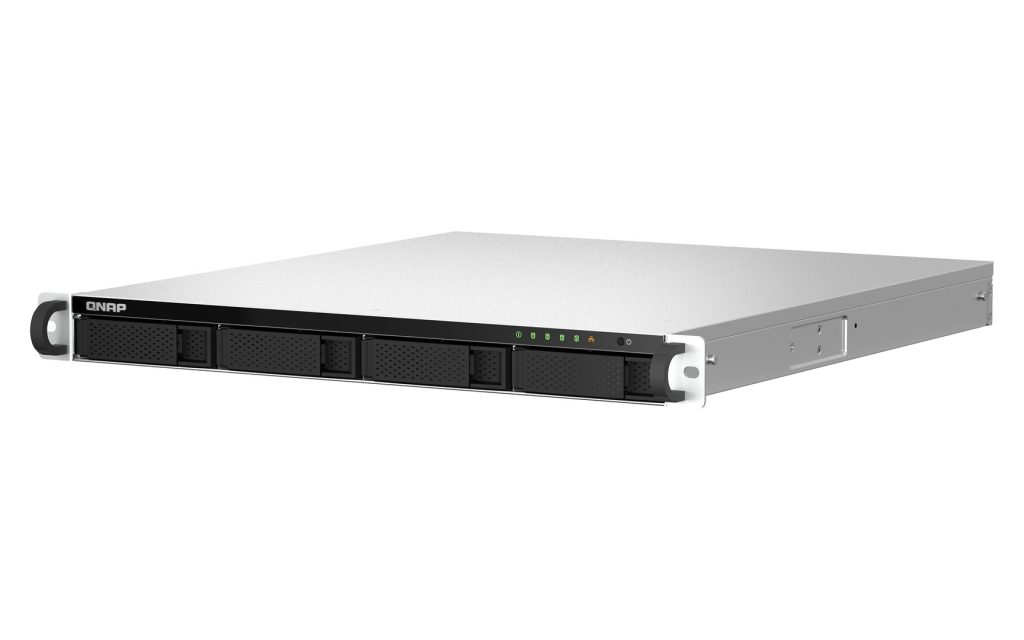

QNAP TS-464U NAS Rack (1U) Intel® Celeron® N5095 8 GB DDR4 0 TB QNAP Turbo System Aluminium, Black

Storage | Supported storage drive interfaces

Serial ATA II, Serial ATA III

Network | Ethernet LAN data rates

10, 100, 2500 Mbit/s, 1000 Mbit/s

Design | Product colour

Black, Aluminium

Network | Wake-on-LAN ready

Yes

Storage | Supported storage drive types

HDD & SSD

Processor | Processor boost frequency

2.9 GHz

Processor | CPU configuration (max)

1

Performance | Reset button

Yes

Design | LED indicators

LAN, Status, Power, HDD

Power | AC input voltage

100 - 240 V

Power | AC input frequency

50 - 60 Hz

Software | Mac operating systems supported

Mac OS X 10.11 El Capitan, Mac OS X 10.10 Yosemite, Mac OS X 10.12 Sierra, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 10.14 Mojave, Mac OS X 12.0 Monterey, Mac OS X 10.15.3 Catalina, Mac OS X 10.13 High Sierra, Mac OS X 13.0 Ventura

Storage | RAID levels

6, 5, 1, 10, JBOD, 0

Performance | Security algorithms

256-bit AES, SNMPv3, SNMPv2, SSH, HTTPS, FIPS 140-2

Weight & dimensions | Package width

667 mm

Memory | Memory form factor

SO-DIMM

Software | Windows operating systems supported

Windows 10, Windows 11, Windows 7, Windows 8

Operational conditions | Operating temperature (T-T)

0 - 40 °C

Ports & interfaces | USB 2.0 ports quantity

2

Processor | Processor model

N5095

Storage | RAID support

Yes

Processor special features | Enhanced Intel SpeedStep Technology

Yes

Processor | Processor threads

4

Other features | Warranty period

3 year(s)

Processor | On-board graphics card model

Intel® UHD Graphics

Weight & dimensions | Package weight

10.6 kg

Performance | Type

NAS

Design | Cooling type

Active

Ports & interfaces | Ethernet LAN (RJ-45) ports

2

Processor special features | Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Memory | Internal memory type

DDR4

Memory | Internal memory

8 GB

Operational conditions | Storage temperature (T-T)

-20 - 70 °C

Processor | Processor cores

4

Packaging content | Power cables quantity

1

Packaging content | Quick start guide

Yes

Ports & interfaces | PCI Express x2 (Gen 3.x) slots

1

Processor | Processor frequency

2 GHz

Processor | Processor family

Intel® Celeron®

Operational conditions | Operating relative humidity (H-H)

5 - 95%

Weight & dimensions | Package depth

612 mm

Packaging content | Package type

Box

Processor special features | Intel VT-x with Extended Page Tables (EPT)

Yes

Software | Operating system installed

QNAP Turbo System

Design | Number of fans

2 fan(s)

Processor special features | Idle States

Yes

Ports & interfaces | USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

Packaging content | Cables included

LAN (RJ-45), AC

Weight & dimensions | Height

43.3 mm

Power | Power consumption (typical)

36.81 W

Memory | Flash memory

4000 MB

Processor special features | Intel Virtualization Technology (VT-x)

Yes

Weight & dimensions | Width

482.6 mm

Weight & dimensions | Package height

160 mm

Processor special features | Intel Trusted Execution Technology

No

Performance | On/off switch

Yes

Ports & interfaces | HDMI ports quantity

1

Network | Ethernet LAN

Yes

Weight & dimensions | Depth

483.9 mm

Performance | Backup function

Yes

Logistics data | Harmonized System (HS) code

84714100

Performance | Buzzer

Yes

Network | iSCSI support

Yes

Storage | Disk roaming

Yes

Power | Power supply location

Built-in

Design | Chassis type

Rack (1U)

Performance | Backup features

Cloud, iSCSI LUN

Storage | Supported file systems

FAT32, ext4, exFAT, HFS+, ext3, NTFS

Performance | Snapshot

Yes

Software | Other operating systems supported

Solaris 10

Storage | Number of storage drives supported

4

Performance | Multilingual support

Yes

Performance | Hot spare

Yes

Storage | Storage drives installed

No

Ports & interfaces | HDMI version

1.4b

Performance | Disk scan

Yes

Storage | Storage drive sizes supported

2.5, 3.5"

Processor special features | Intel 64

Yes

Processor | Processor manufacturer

Intel

Memory | Maximum RAM supported

16 GB

Network | Dynamic DNS (DDNS)

Yes

Network | Copper ethernet cabling technology

1000BASE-T, 10BASE-T, 100BASE-TX, 2500BASE-T

Network | DHCP server

Yes

Performance | System log

Yes

Storage | Storage drive capacity

0 GB

Storage | Online RAID expansion

Yes

Software | Server operating systems supported

Windows Server 2012, Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Performance | Browser supported

Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox

Storage | Online RAID migration

Yes

Power | Fan voltage

12 V

Storage | RAID rebuild

Yes

Performance | Access Control List (ACL)

Yes

Performance | Share folder

CIFS/SMB

Ports & interfaces | Concurrent connections

1500

Storage | Installed storage drive type

No

Software | Operating system version

5.0.1

Performance | Built-in FTP server

Yes

Design | Fan diameter

4 cm

Power | Number of power supply units

1

Performance | Management protocols

SNMP V2, V3

Power | Power supply unit (PSU) capacity

250 W

Power | Power consumption (sleep)

22.285 W

Performance | S.M.A.R.T. support

Yes

Software | Linux operating systems supported

Ubuntu 14.04

Storage | Total installed storage capacity

0 TB

Memory | Memory slots

2

Network | Jumbo frames support

Yes

Ports & interfaces | USB port

Yes

Packaging content | Number of screws

84

Storage | Hot-swap drive bays

Yes

Performance | Device class

Small & Medium Business

Safety warning | Warnings

Do not dismantle the appliance yourself., Do not dispose of the device in the regular rubbish bin. The product requires special disposal., Avoid contact with liquids.
