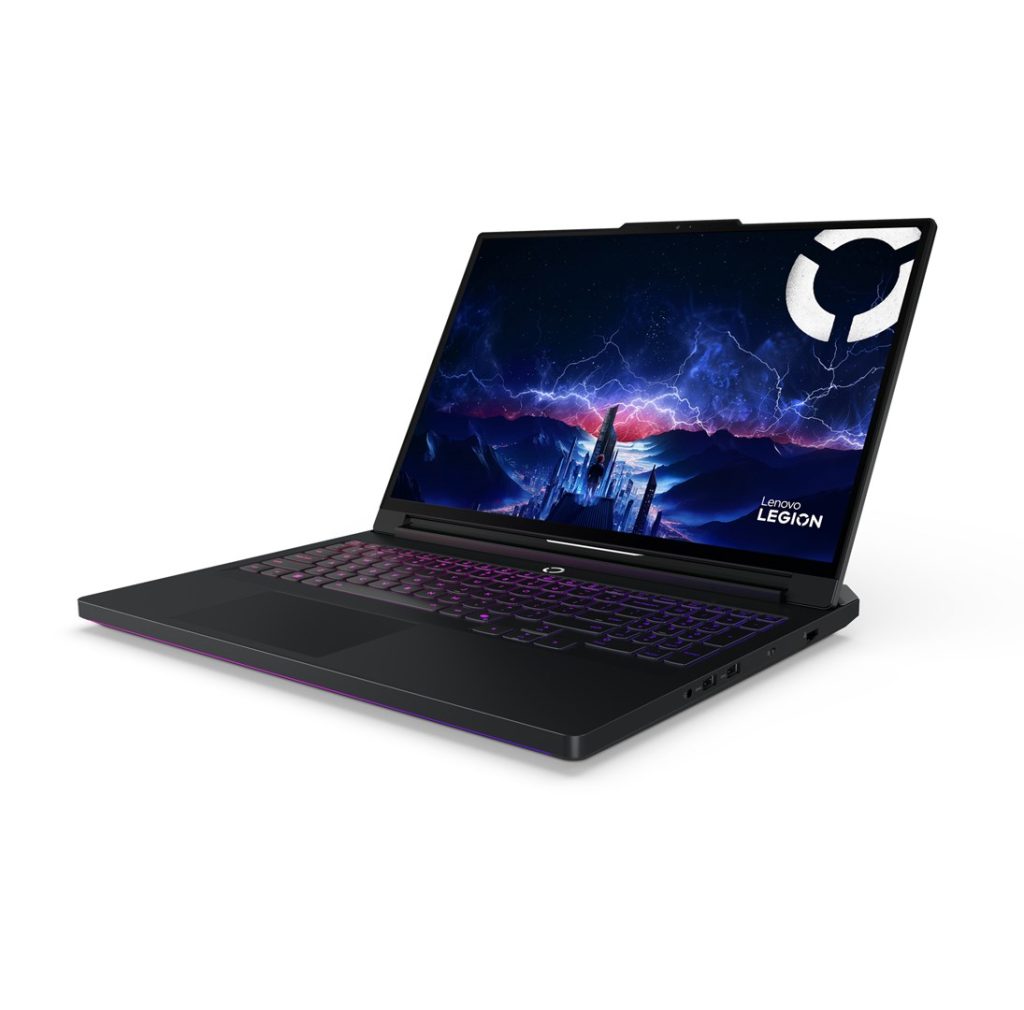

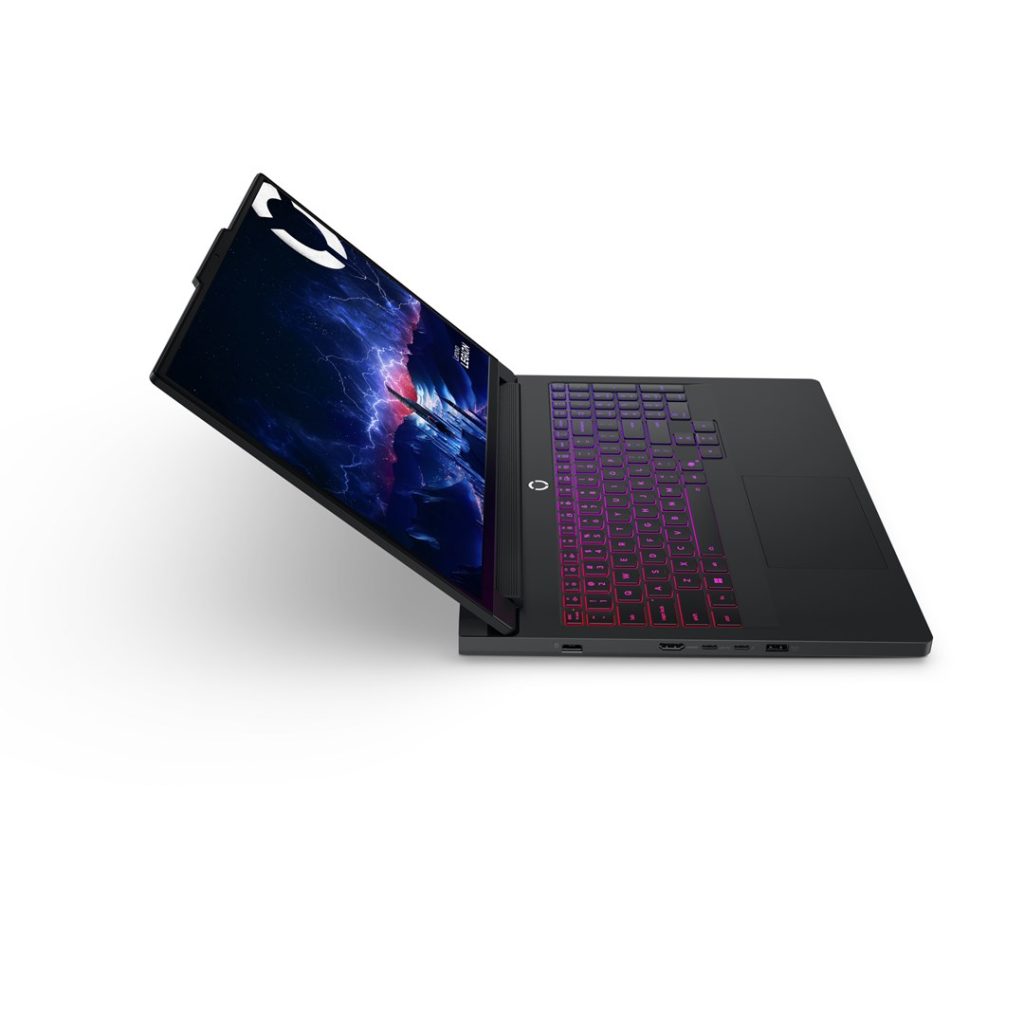

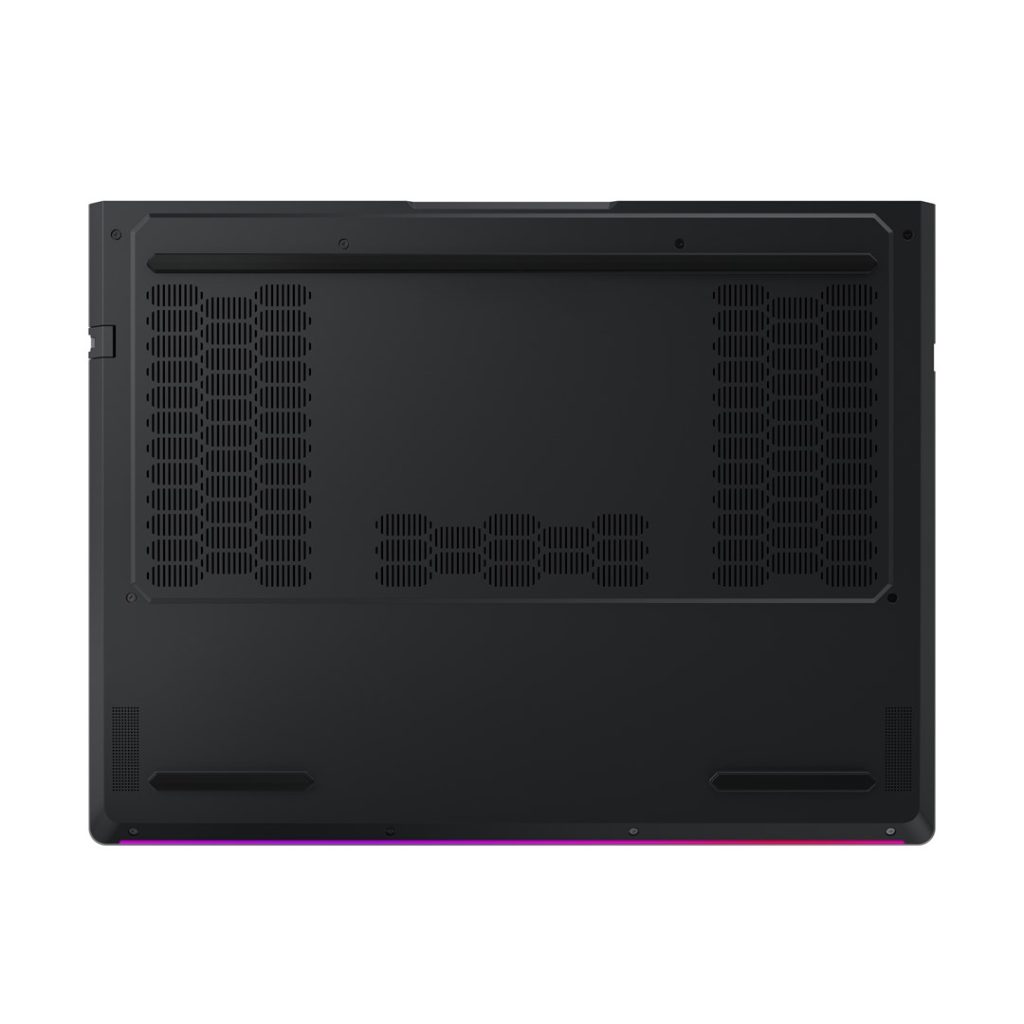

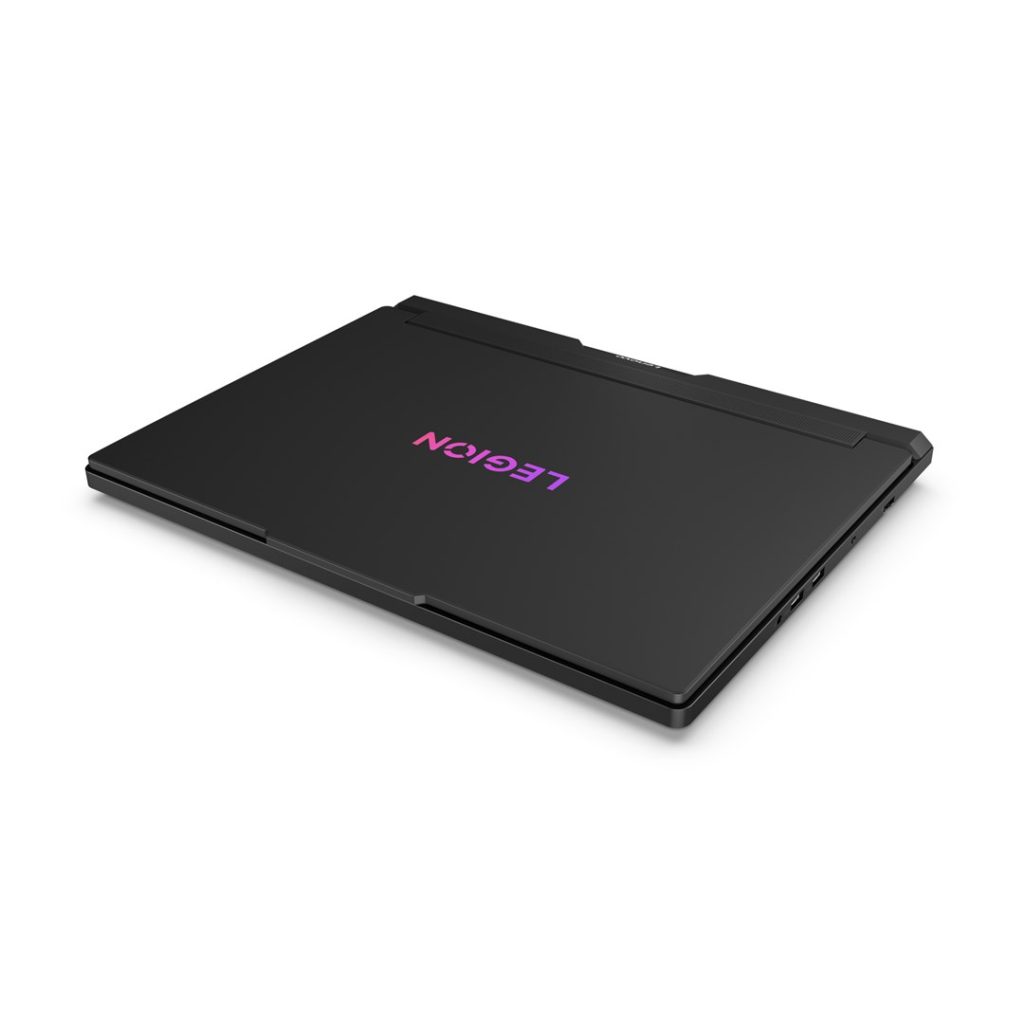

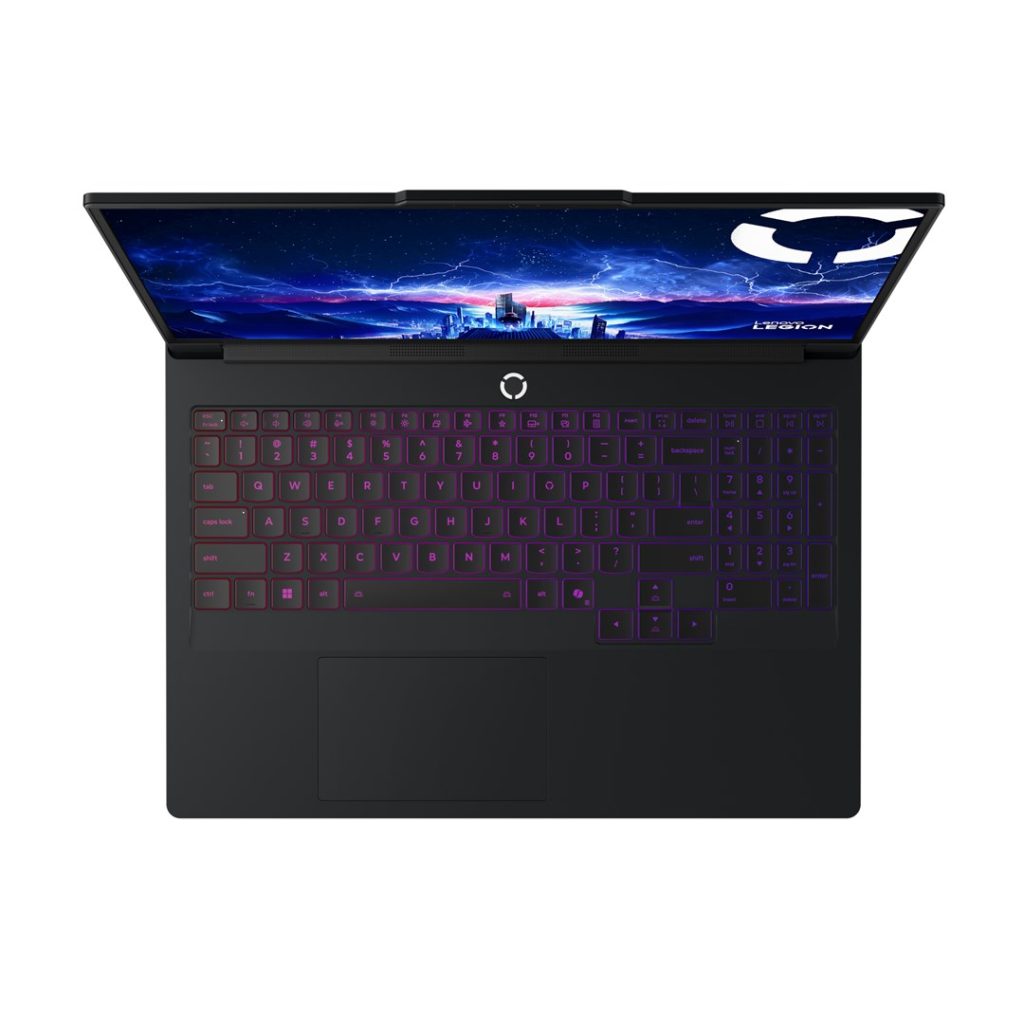

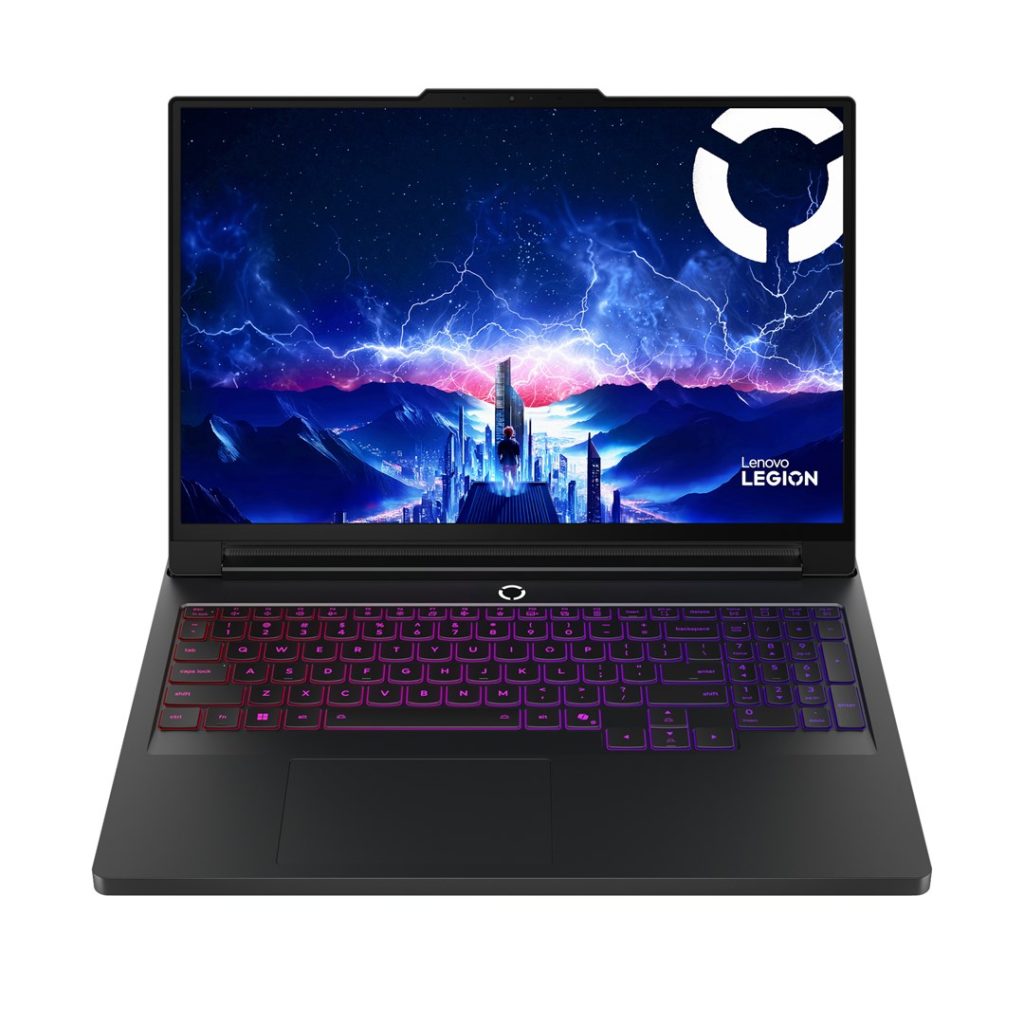

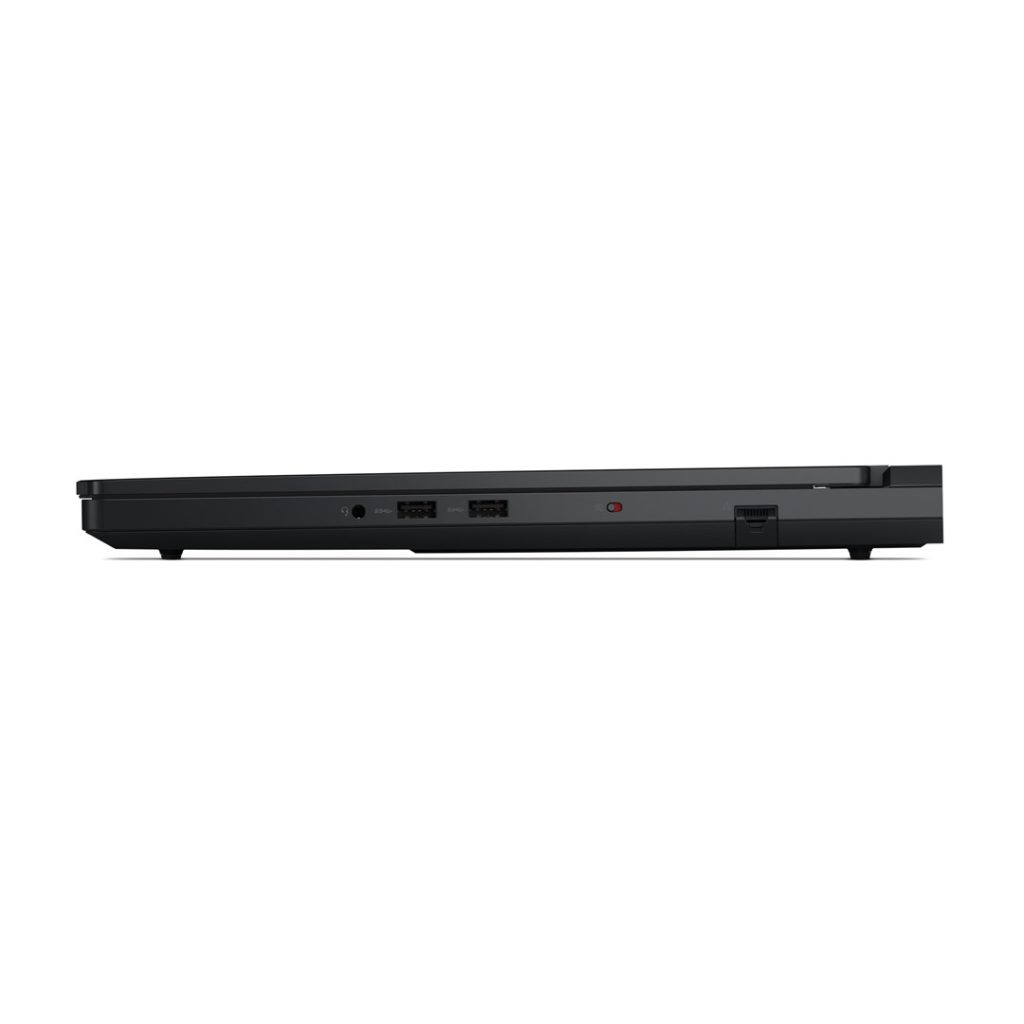

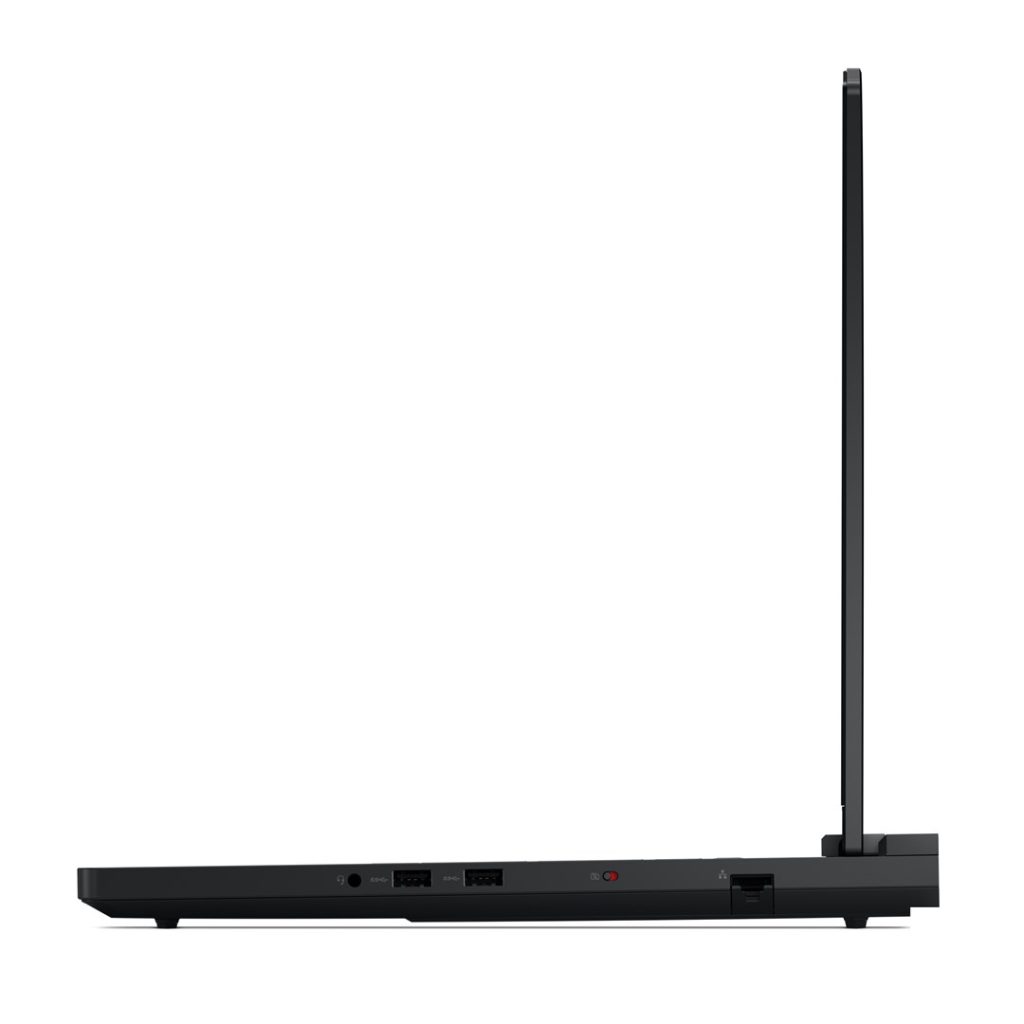

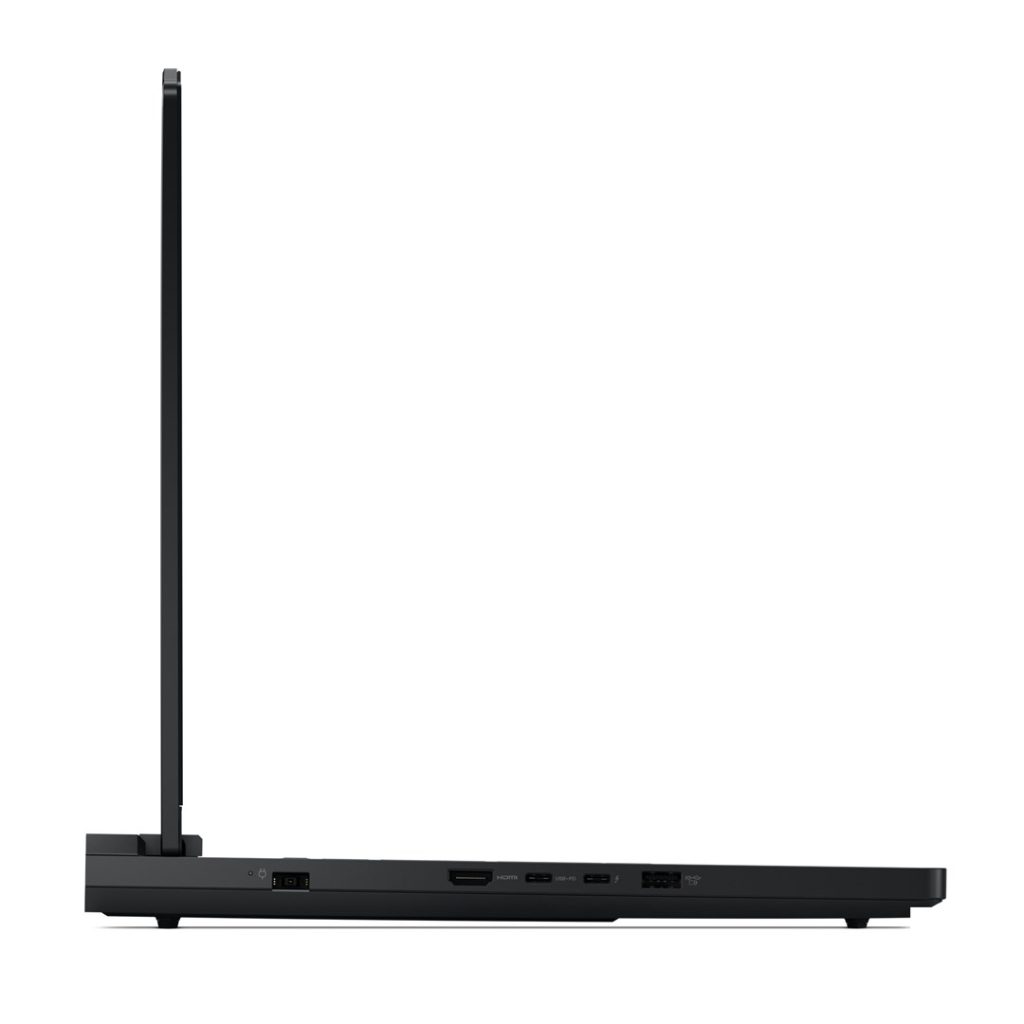

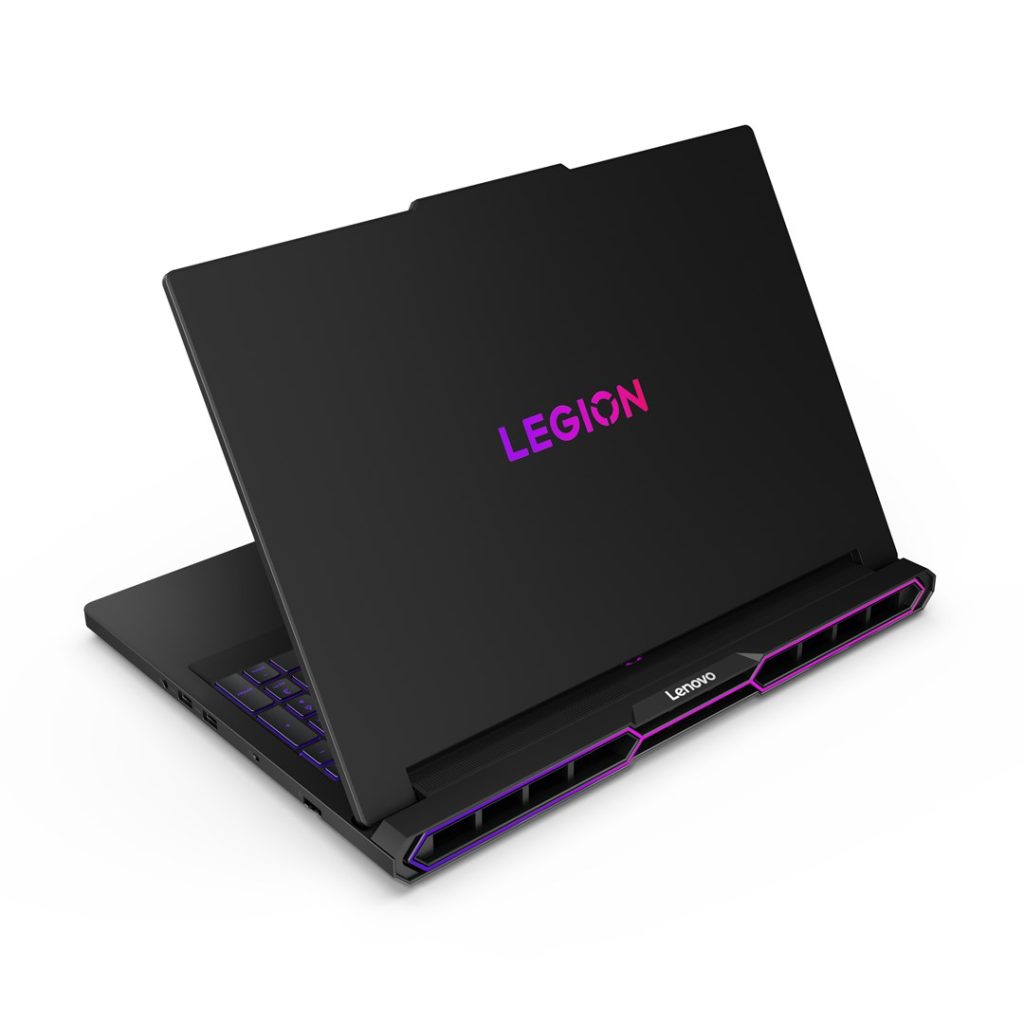

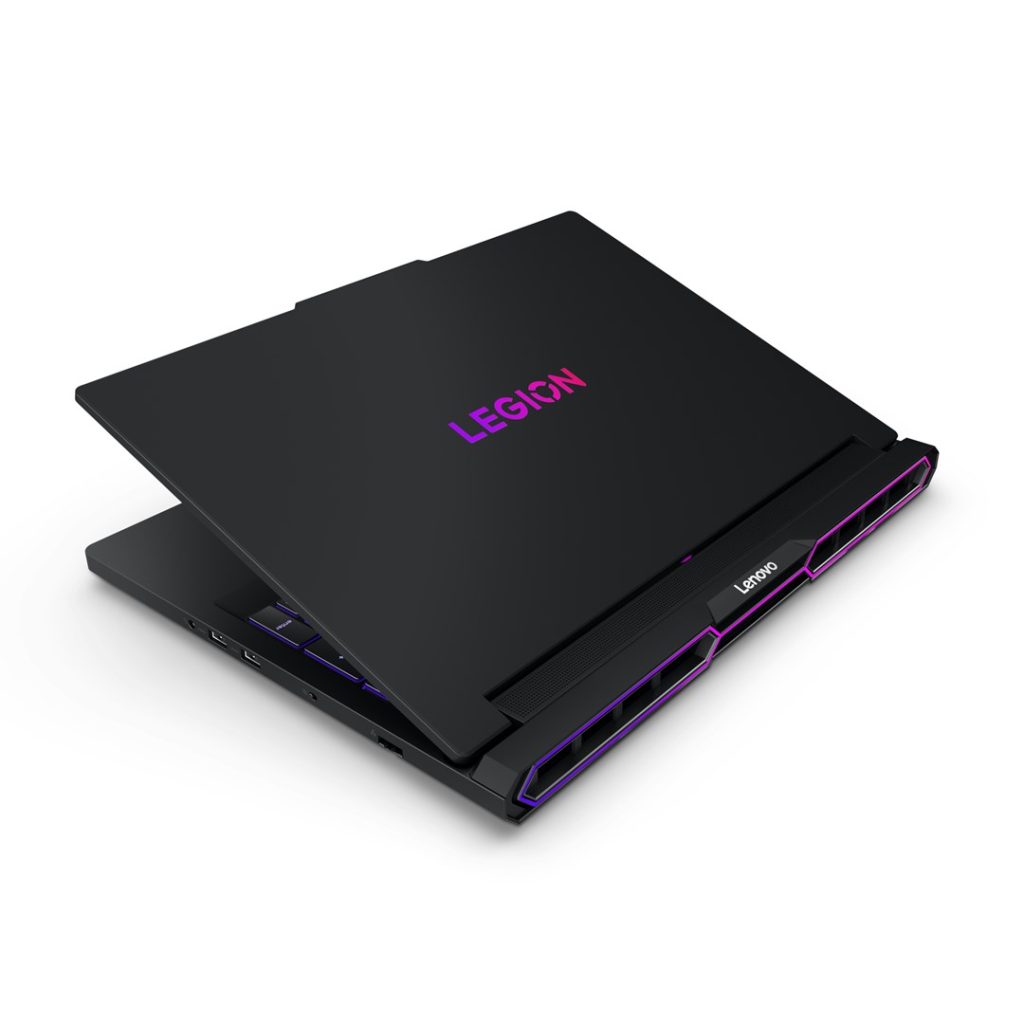

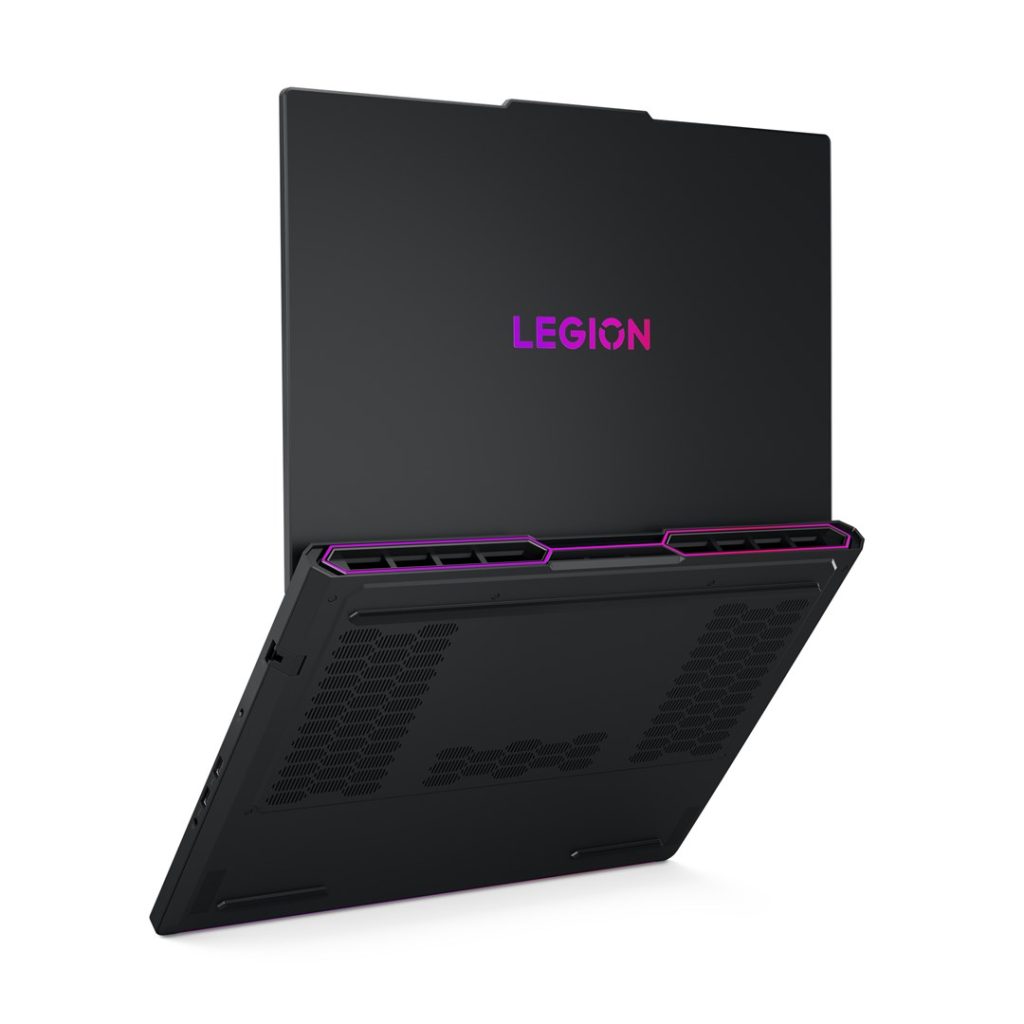

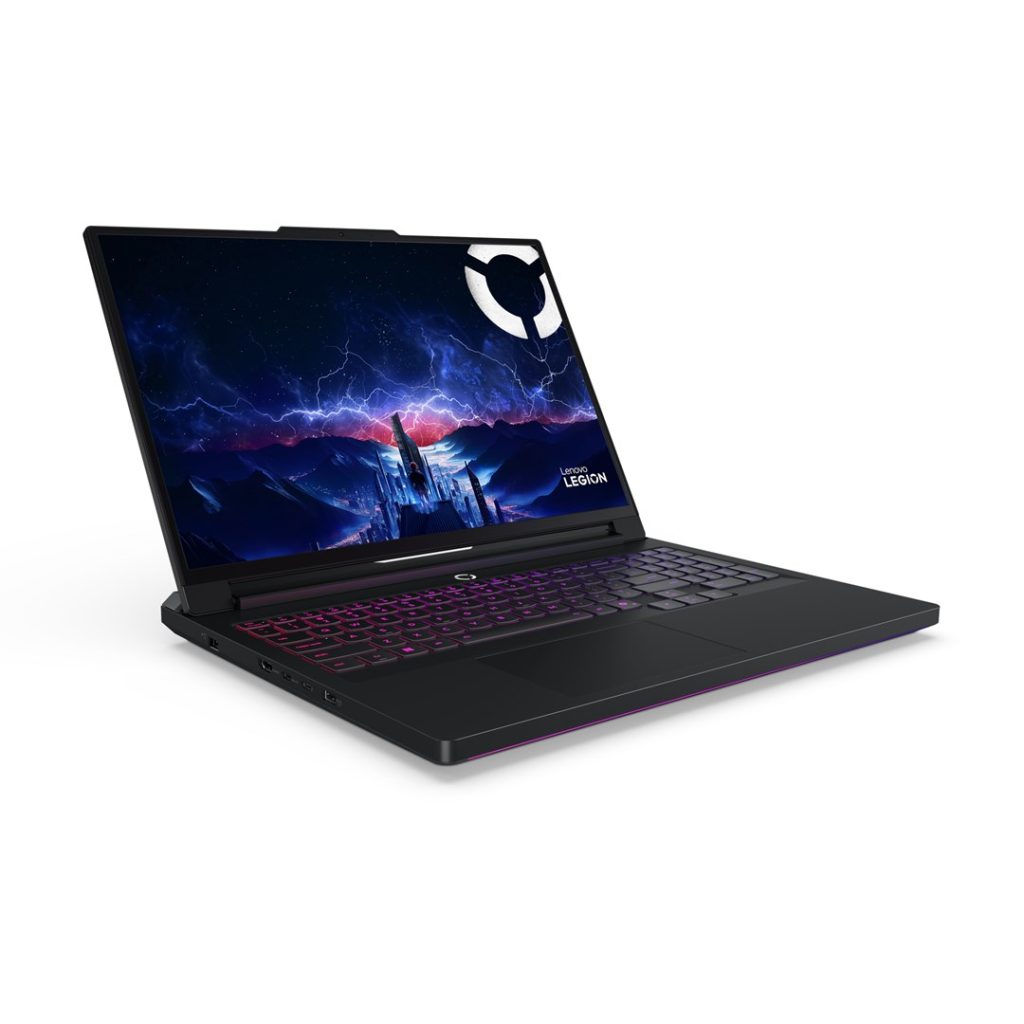

Lenovo Legion Pro 7 16IAX10H Intel Core Ultra 9 275HX Laptop 40.6 cm (16") WQXGA 64 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5090 Wi-Fi 7 (802.11be) Windows 11 Home Black

Certificates | Certification

RoHS

Design | Product colour

Black

Graphics | Discrete graphics card memory

24 GB

Memory | Memory clock speed

6400 MHz

Display | Display diagonal

40.6 cm (16")

Graphics | Discrete graphics card model

NVIDIA GeForce RTX 5090

Packaging content | AC adapter included

Yes

Operational conditions | Storage temperature (T-T)

5 - 43 °C

Display | LED backlight

Yes

Graphics | On-board graphics card model

Intel® Graphics

Weight & dimensions | Weight

2.57 kg

Processor | Processor cores

24

Network | Bluetooth

Yes

Audio | Built-in microphone

Yes

Storage | Optical drive type

No

Ports & interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Audio | Audio chip

Realtek ALC3306

Display | HD type

WQXGA

Processor | Processor threads

24

Display | Display resolution

2560 x 1600 pixels

Operational conditions | Operating relative humidity (H-H)

8 - 95%

Memory | Maximum internal memory

64 GB

Memory | Memory form factor

SO-DIMM

Processor | Processor model

275HX

Processor | Processor cache

36 MB

Network | Antenna type

2x2

Processor | Processor boost frequency

5.4 GHz

Storage | Total storage capacity

1 TB

Performance | Motherboard chipset

Intel HM870

Processor | Processor family

Intel Core Ultra 9

Ports & interfaces | Ethernet LAN (RJ-45) ports

1

Power | AC adapter input voltage

100 - 240 V

Operational conditions | Storage relative humidity (H-H)

5 - 95%

Memory | Internal memory

64 GB

Security | Trusted Platform Module (TPM)

Yes

Operational conditions | Operating temperature (T-T)

5 - 35 °C

Ports & interfaces | Combo headphone/mic port

Yes

Memory | Internal memory type

DDR5-SDRAM

Display | Native aspect ratio

16:10

Display | Display surface

Gloss

Processor | Processor manufacturer

Intel

Weight & dimensions | Width

364.4 mm

Graphics | On-board graphics card

Yes

Keyboard | Numeric keypad

Yes

Ports & interfaces | HDMI version

2.1

Keyboard | Pointing device

Touchpad

Ports & interfaces | HDMI ports quantity

1

Ports & interfaces | USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

Network | Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Ports & interfaces | USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Storage | Storage media

SSD

Network | Wi-Fi standards

Wi-Fi 7 (802.11be)

Storage | Card reader integrated

No

Weight & dimensions | Depth

275.9 mm

Network | Ethernet LAN

Yes

Power | AC adapter power

400 W

Graphics | Discrete graphics card

Yes

Software | Operating system architecture

64-bit

Audio | Number of microphones

2

Graphics | Discrete graphics memory type

GDDR7

Storage | SSD form factor

M.2

Storage | NVMe

Yes

Security | Trusted Platform Module (TPM) version

2.0

Software | Operating system installed

Windows 11 Home

Storage | Total SSDs capacity

1 TB

Camera | Front camera resolution (numeric)

5 MP

Design | Colour name

Eclipse Black

Security | Fingerprint reader

No

Design | Product type

Laptop

Ports & interfaces | USB Type-C DisplayPort Alternate Mode

Yes

Display | High Dynamic Range (HDR) technology

DisplayHDR True Black 1000, Dolby Vision

Processor | Performance-core Max Turbo Frequency

5.4 GHz

Neural processor unit (NPU) | Windows Studio effects support

Yes

Graphics | Discrete GPU manufacturer

NVIDIA

Processor | Performance-core base frequency

2.7 GHz

Display | Touchscreen

No

Graphics | On-board graphics card family

Intel® Graphics

Storage | SSD capacity

1 TB

Storage | SSD interface

PCI Express

Power | USB Power Delivery (USB PD)

Yes

Neural processor unit (NPU) | Neural processor unit (NPU)

Intel AI Boost

Audio | Number of built-in speakers

4

Design | Housing material

Aluminium

Keyboard | Keyboard backlit colour

RGB

Network | Bluetooth version

5.4

Ports & interfaces | Thunderbolt 4 ports quantity

1

Processor | Performance cores

8

Processor | Maximum turbo power

160 W

Memory | Memory layout (slots x size)

2 x 32 GB

Processor | Processor base power

55 W

Display | Colour gamut

100%

Display | Panel type

OLED

Display | Display brightness

500 cd/m²

Packaging content | Package contents

4 x interchangeable keycaps

Network | WWAN

Not installed

Ports & interfaces | USB Sleep-and-Charge

Yes

Neural processor unit (NPU) | NPU performance up to

13 TOPs

Processor | Efficient cores

16

Keyboard | Keyboard backlit

Yes

Safety warning | Hazard pictogram(s)

GHS09: Environmental hazard, GHS08: Health hazard, GHS07: Harmful

Network | Mobile network connection

No

Processor | Processor generation

Intel Core Ultra (Series 2)

Keyboard | Keyboard backlit zone

Per-key RGB

Display | Maximum refresh rate

240 Hz

Display | RGB colour space

DCI-P3

Power | USB Type-C charging port

Yes

Safety warning | Warnings

Do not dispose of in normal household waste; appropriate disposal must be carried out in accordance with environmental regulations., The device may become hot during operation; use caution to avoid burns., Keep out of reach of children to avoid risk of electric shock.

Power | AC adapter frequency

50/60 Hz

Neural processor unit (NPU) | Total processor performance up to

36 TOPs

Processor | Efficient-core Max Turbo Frequency

4.6 GHz

Display | High Dynamic Range (HDR) supported

Yes

Battery | Battery capacity

99.9 Wh

Storage | Number of SSDs installed

1

Neural processor unit (NPU) | AI software frameworks supported by NPU

WebNN, OpenVINO, DirectML, ONNX RT, Windows ML

Graphics | On-board GPU manufacturer

Intel

Neural processor unit (NPU) | Sparsity support

Yes

Processor | Efficient-core base frequency

2.1 GHz

Neural processor unit (NPU) | GPU performance up to

8 TOPs
