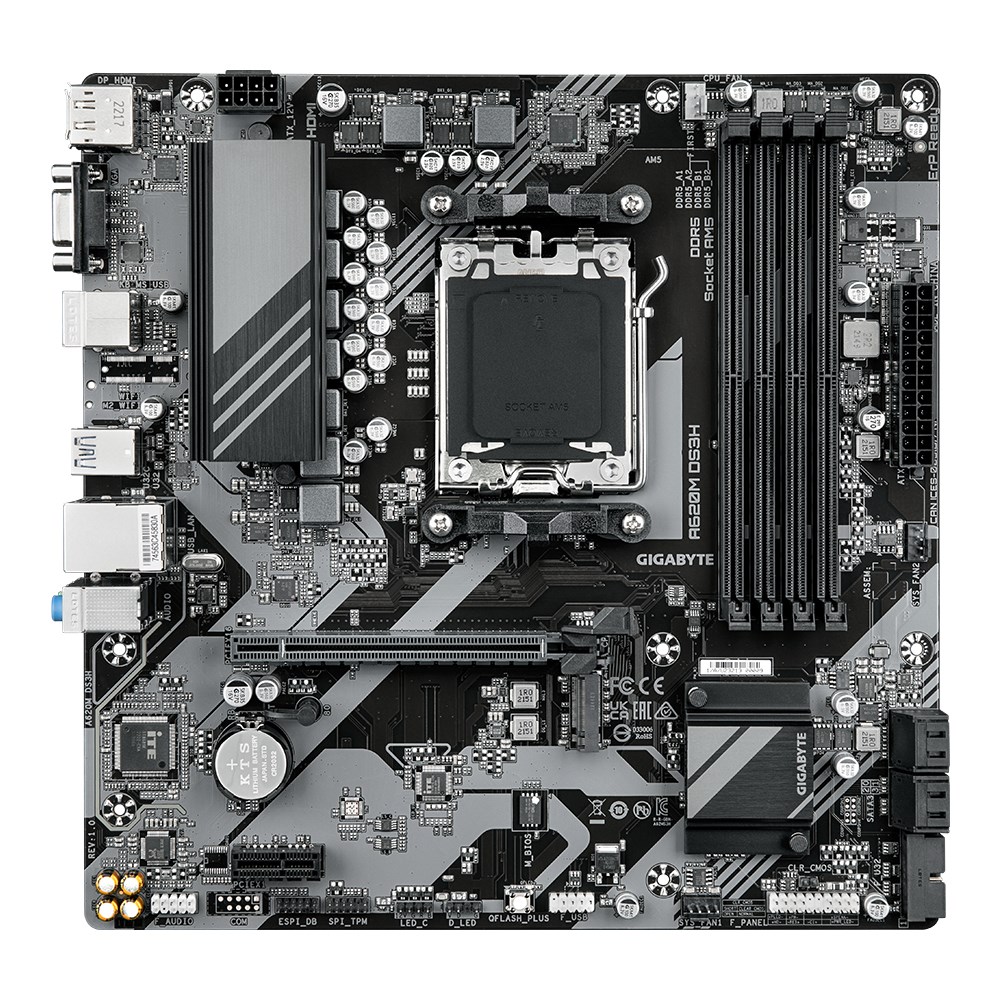

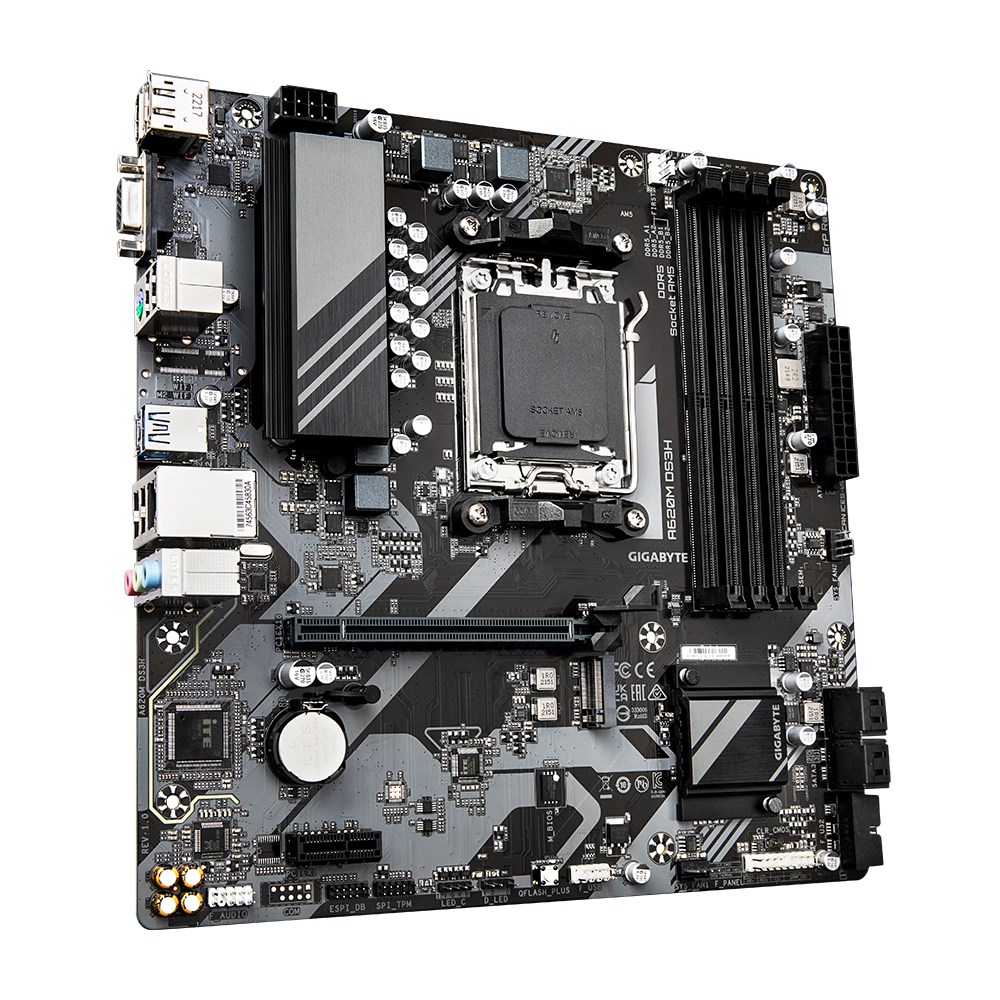

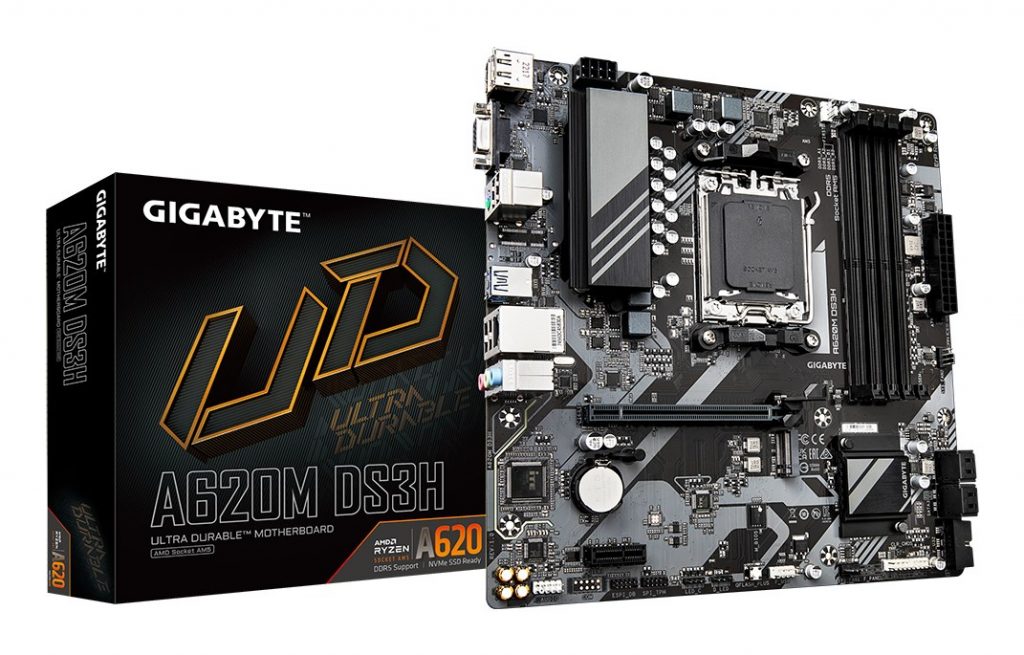

GIGABYTE A620M DS3H AMD Ryzen 8000, 5+2+2 VRM, DDR5 7600MHz OC, 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1

Pakkauksen sisältö | Bundled software

Norton® Internet Security (OEM version)LAN bandwidth management software

Laajennuspaikat | PCI Express x16 slots

1

BIOS | Desktop Management Interface (DMI) version

2.7

Storage controllers | Supported storage drive interfaces

M.2, SATA III

Rear panel I/O ports | Number of audio jack connectors

3

Verkko | Ethernet LAN data rates

100, 1000, 10

Rear panel I/O ports | USB connector type

USB Type-C, USB Type-A

Rear panel I/O ports | USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Ominaisuudet | Motherboard chipset family

AMD

Tekniset tiedot | Warranty period

3 year(s)

Akku | Number of battery cells

1

Storage controllers | RAID levels

1, 10, 0

Storage controllers | Number of storage drives supported

4

Sisäinen I/O | ATX Power connector (24-pin)

Kyllä

Storage controllers | RAID support

Kyllä

Sisäinen I/O | Front panel connector

Kyllä

Grafiikka | HDCP

Kyllä

Ominaisuudet | Audio output channels

7.1 channels

Ominaisuudet | Windows operating systems supported

Windows 10 x64, Windows 11 x64

Sisäinen I/O | TPM connector

Kyllä

Sisäinen I/O | Total number of SATA connectors

4

Sisäinen I/O | EPS power connector (8-pin)

Kyllä

Muisti | Supported memory clock speeds

6200, 6000, 6800, 5200, 6400, 7600, 4800, 7000, 5600 MHz, 7200, 6600

Storage controllers | Supported storage drive types

HDD & SSD

Ominaisuudet | Motherboard chipset

AMD A620

Verkko | Ethernet LAN

Kyllä

Rear panel I/O ports | DisplayPort-porttien määrä

1

Rear panel I/O ports | HDMI version

2.1

Ominaisuudet | Motherboard form factor

micro ATX

Muisti | Supported memory clock speed (max)

7600 MHz

Prosessori | Compatible processor series

AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series

Verkko | Ethernet interface type

Gigabit Ethernet

Prosessori | Maximum internal memory supported by processor

256 GB

Grafiikka | HDCP version

2.3

Paino ja mitat | Syvyys

174 mm

Laajennuspaikat | PCI Express x1 slots

1

Sisäinen I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Muisti | Memory slots type

DIMM

Laajennuspaikat | Number of M.2 (M) slots

1

Prosessori | Supported processor sockets

Socket AM5

Akku | Battery type

CR2032

BIOS | Clear CMOS jumper

Kyllä

Sisäinen I/O | CPU fan connector

Kyllä

Sisäinen I/O | Front panel audio connector

Kyllä

Prosessori | Prosessorin valmistaja

AMD

Muisti | Unbuffered memory

Kyllä

Muisti | Supported memory types

DDR5-SDRAM

Prosessori | Processor socket

Socket AM5

Sisäinen I/O | USB 2.0 connectors

1

Ominaisuudet | PC health monitoring

Voltage, Fan, Temperature

Sisäinen I/O | RGB LED pin header

Kyllä

Muisti | Maximum internal memory

256 GB

Paino ja mitat | Leveys

244 mm

Rear panel I/O ports | PS/2 ports quantity

1

Muisti | Memory channels

Kaksikanavainen

Rear panel I/O ports | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

Akku | Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Rear panel I/O ports | HDMI-porttien määrä

1

Sisäinen I/O | 12V power connector

Kyllä

Akku | Battery weight

3 g

Rear panel I/O ports | USB 2.0 ports quantity

4

Rear panel I/O ports | Ethernet LAN (RJ-45) -portit

1

BIOS | BIOS type

UEFI AMI

Sisäinen I/O | Number of SATA III connectors

4

Rear panel I/O ports | DisplayPort version

1.4

Rear panel I/O ports | Headphone outputs

3

Rear panel I/O ports | VGA (D-Sub) ports quantity

1

Muisti | Number of memory slots

4

Akku | Lithium weight per battery

0.07 g

Muisti | ECC сompatibility

Non-ECC
